I/O Breakout To RJ45

This product is currently sold out.
Tell me when it's back in stock

$14.00

This product can be purchased directly from SuperHouse Automation.

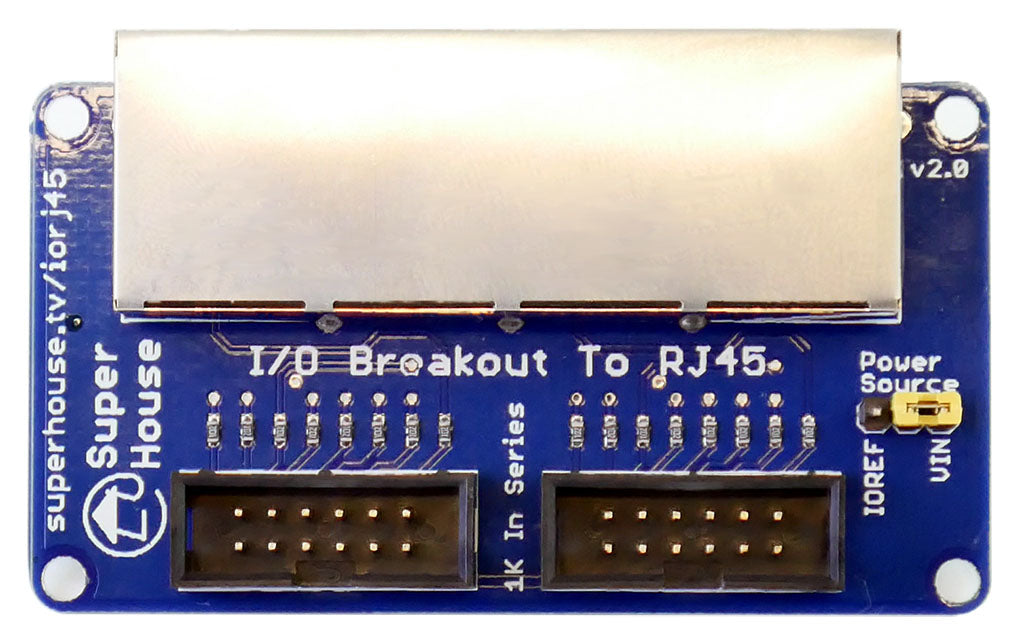

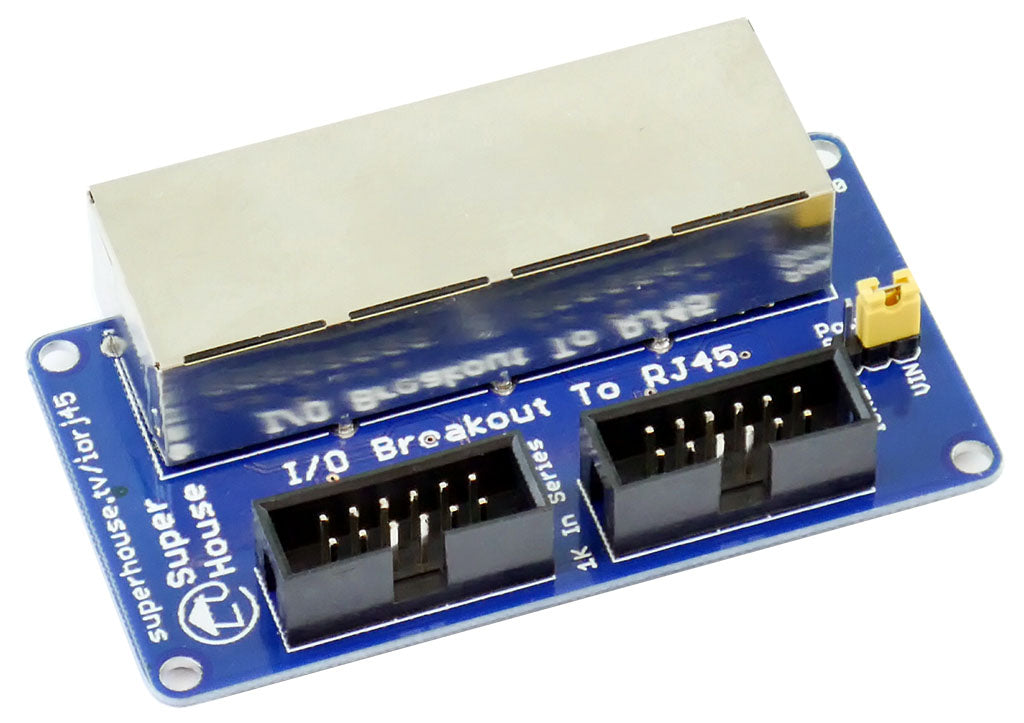

Break out I/O pins to RJ45 sockets.

Each RJ45 socket provides connections or 4 data lines, 2 GND lines, and 2 power lines. The power connection can be linked to either IOREF or VIN using a jumper.

Each data line has a 1k resistor in series to provide current limiting to the I/O pins.

Features

  • 2x6 (12-way) IDC headers for connection to I/O Breakout Shield
  • 4 x RJ45 sockets
  • Selectable power jumper to RJ45 sockets: either IOREF or VIN
