LibreSat Prototyping Module

This product is currently sold out.
Tell me when it's back in stock

$44.00

This is the board that was used to hand-assemble early prototypes of the first two ArduSat satellites that went into space in 2013. We have a small number of these left over from that production run, so this is your chance to own a piece of Arduino and space history!

Build a custom CubeSat satellite module by combining your own parts and sensors with the LibreSat Prototyping Module. Excellent for non-satellite projects too.

This module is primarily designed for prototyping experimental hardware on the ground and for testing on HAB (high altitude balloon) and sounding-rocket flights. Perfect if you're planning to have an experiment performed on an ArduSat mission and you want to assemble hardware locally for testing.

Features

  • Gold plated PCB.

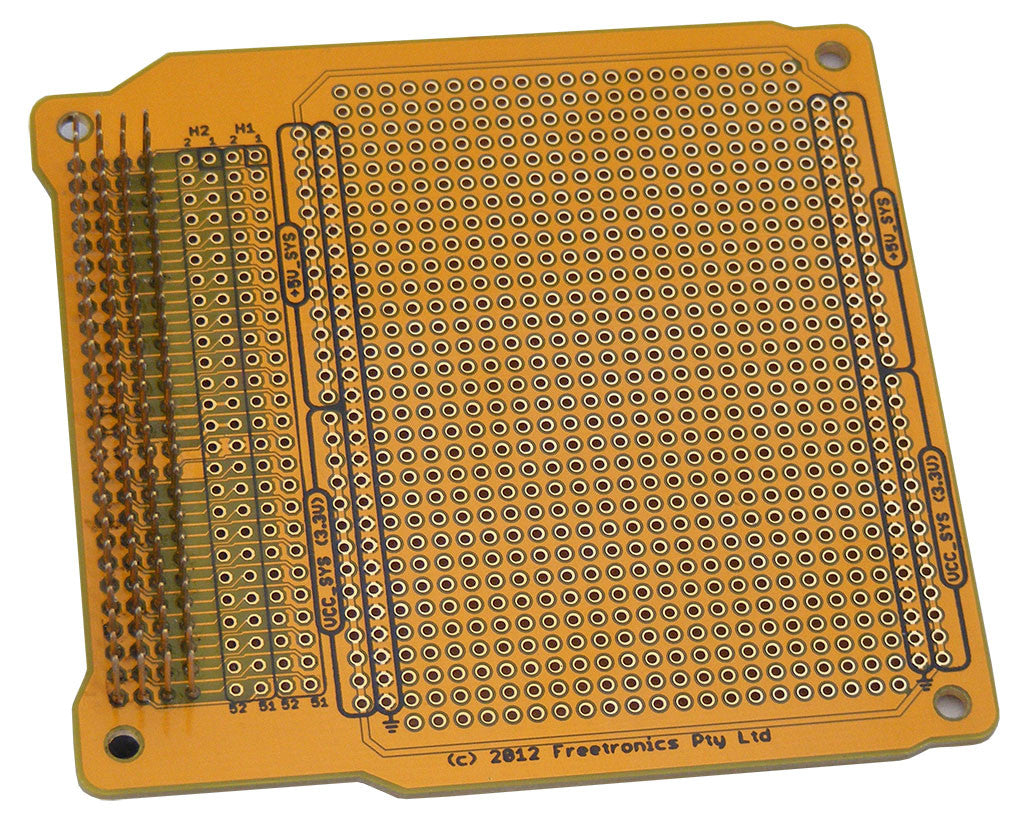

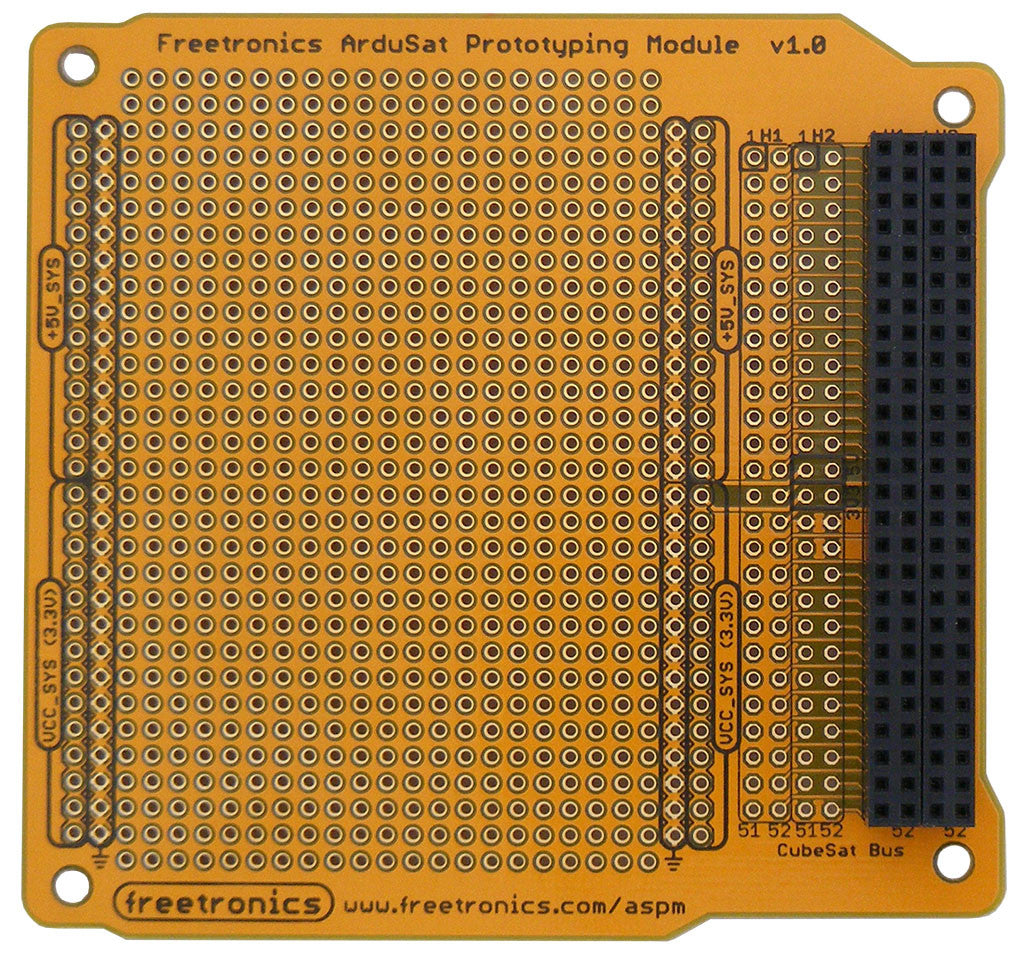

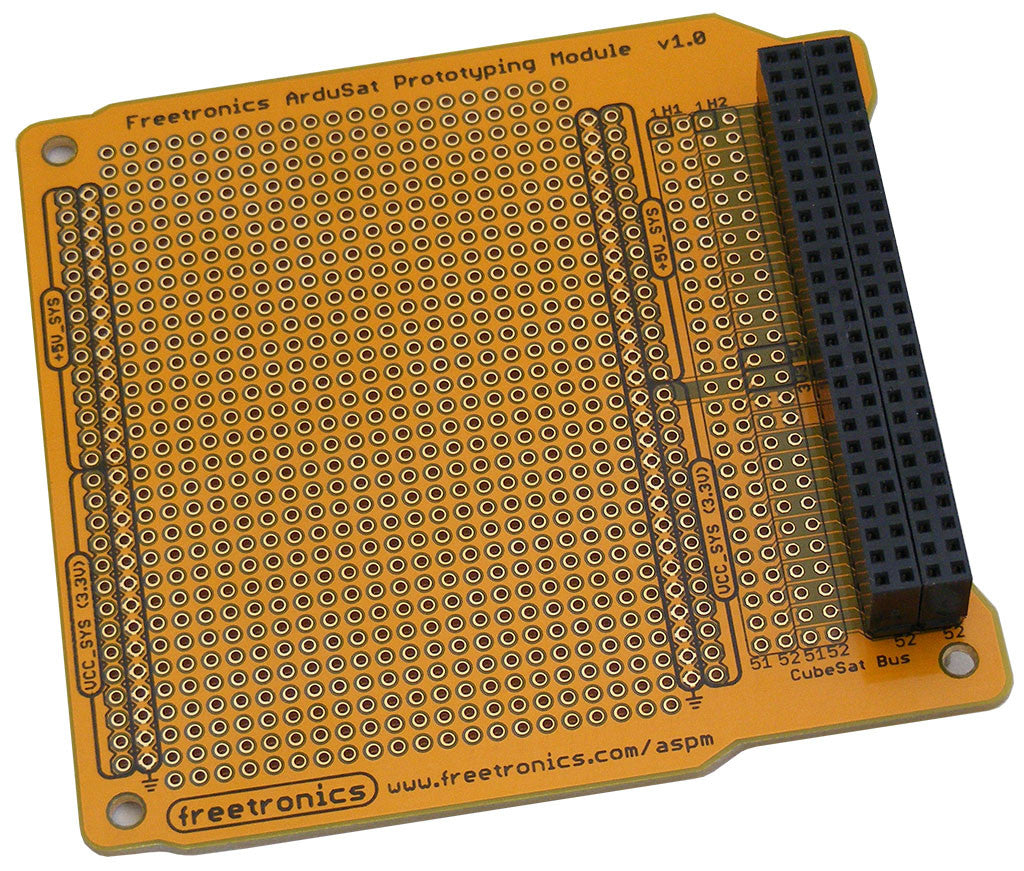

  • Huge 651 hole prototyping area (all holes separate).
  • CubeSat bus broken out to handy individual connections.
  • GND, 5V, and 3.3V rails linked to CubeSat bus.
  • Mechanically compliant with CubeSat specifications for hole locations and outer dimensions.
  • External clearances for vertical interconnect cables.
  • Stackable H1 and H2 CubeSat bus connectors: 0.1" spacing, 104 pins total.

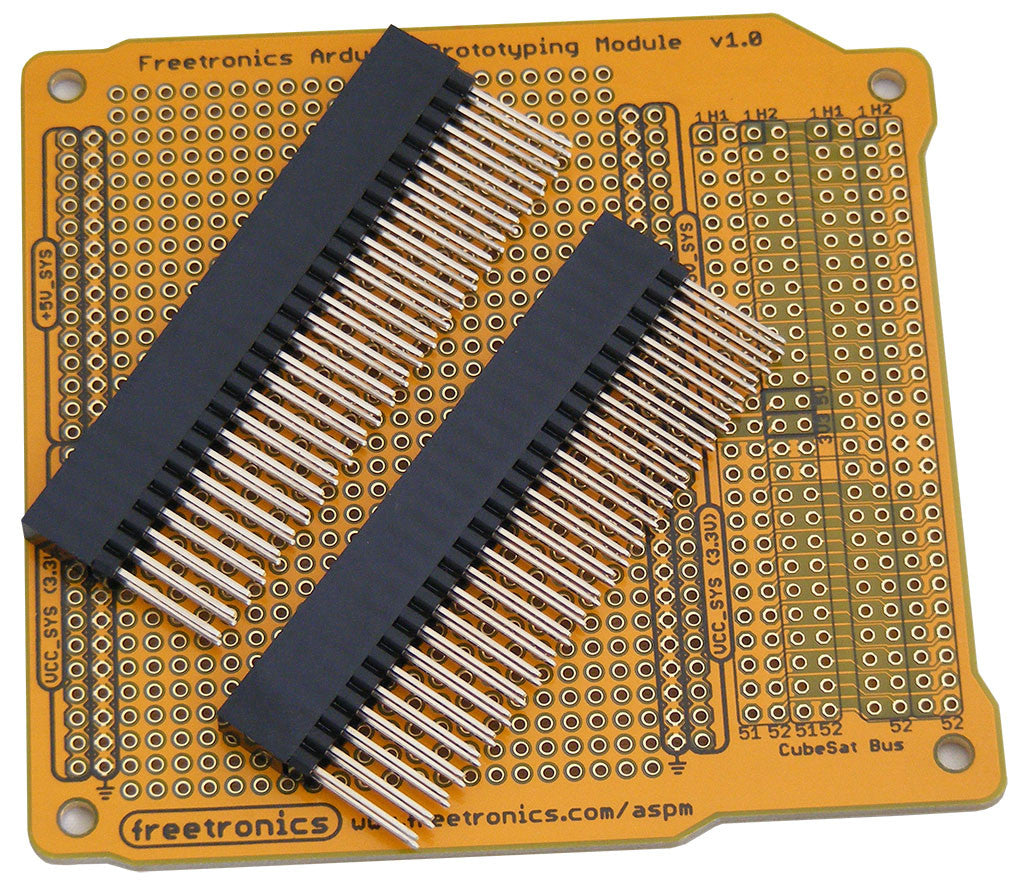

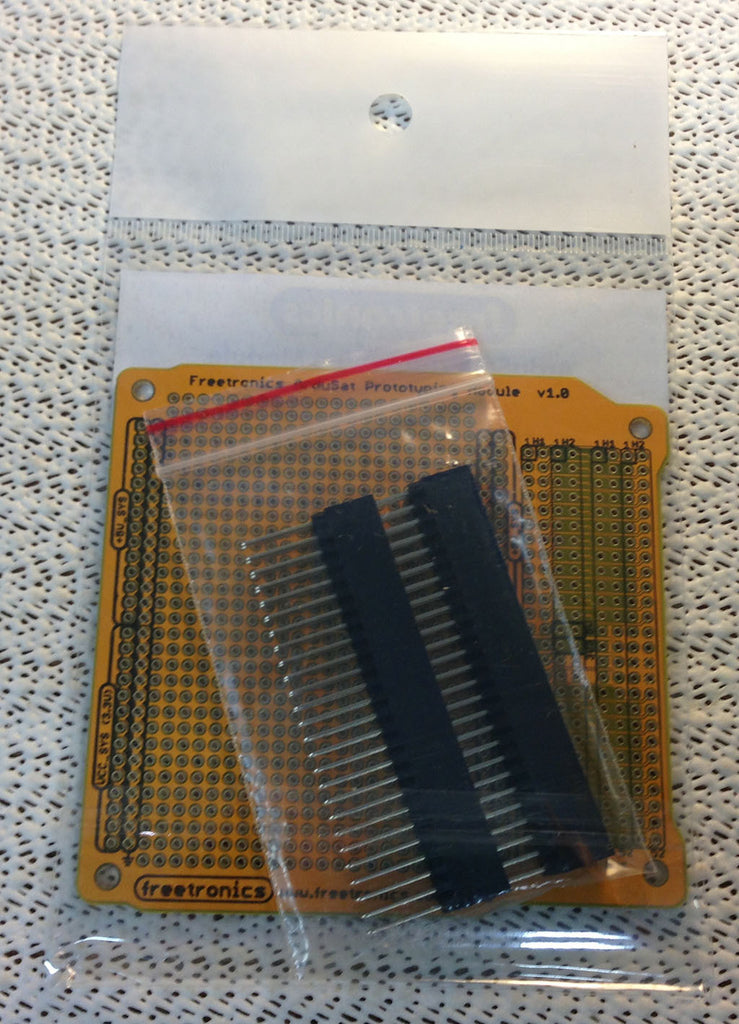

Supplied with CubeSat bus connectors separate, ready to be soldered on.




Specifications

  • Dimensions: 95.45mm x 90.3mm
  • PCB material: FR4 fibreglass (requires out-gassing before vacuum use)
  • PCB connections: ENIG (electroless nickel immersion gold)
  • Bare PCB mass: 25 grams
  • Connector mass (pair): 15 grams
  • Total assembled mass including solder: 42 grams

SKU:
  • ASPM (0)
