Standard Servo

$14.00

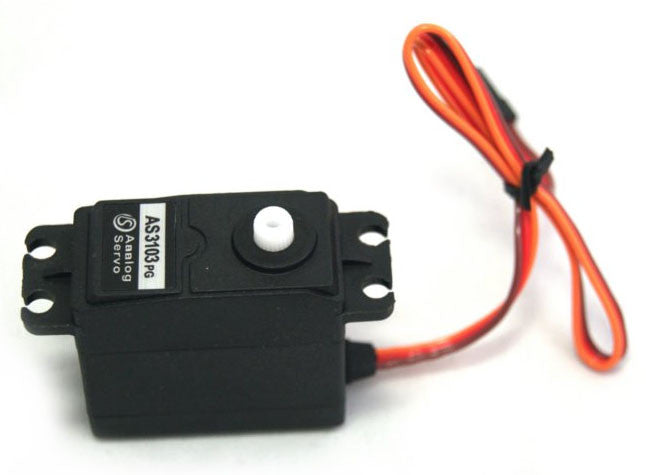

Standard hobby servo that rotates approximately 180 degrees.

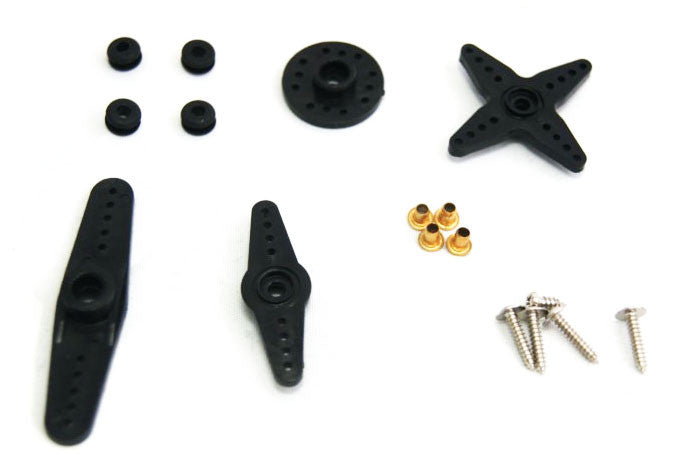

Comes with a variety of horns, mounting screws, and rubber mounting bushes.

Note: If you need a continuous rotation servo, please see: Continuous Rotation Servo.

Specifications

  • Dimensions: 40 x 20 x 37.5mm (servo body, not including mounting tabs)
  • Weight: 38g
  • Operating Voltage: 4.8-6V
  • Speed at 4.8V: 0.19sec/60 degrees
  • Torque at 4.8V: 5kg/cm
  • Speed at 6.0V: 0.22sec/60 degrees
  • Torque at 6.0V: 5.5kg/cm
  • Gear Type: plastic
  • Cable Length: 320mm
  • Lead Colours: red = +4.8-6V, brown = 0V, orange = signal

SKU:
  • SSERVO (10)
