PiBreak Raspberry Pi Prototyping Board

$8.00

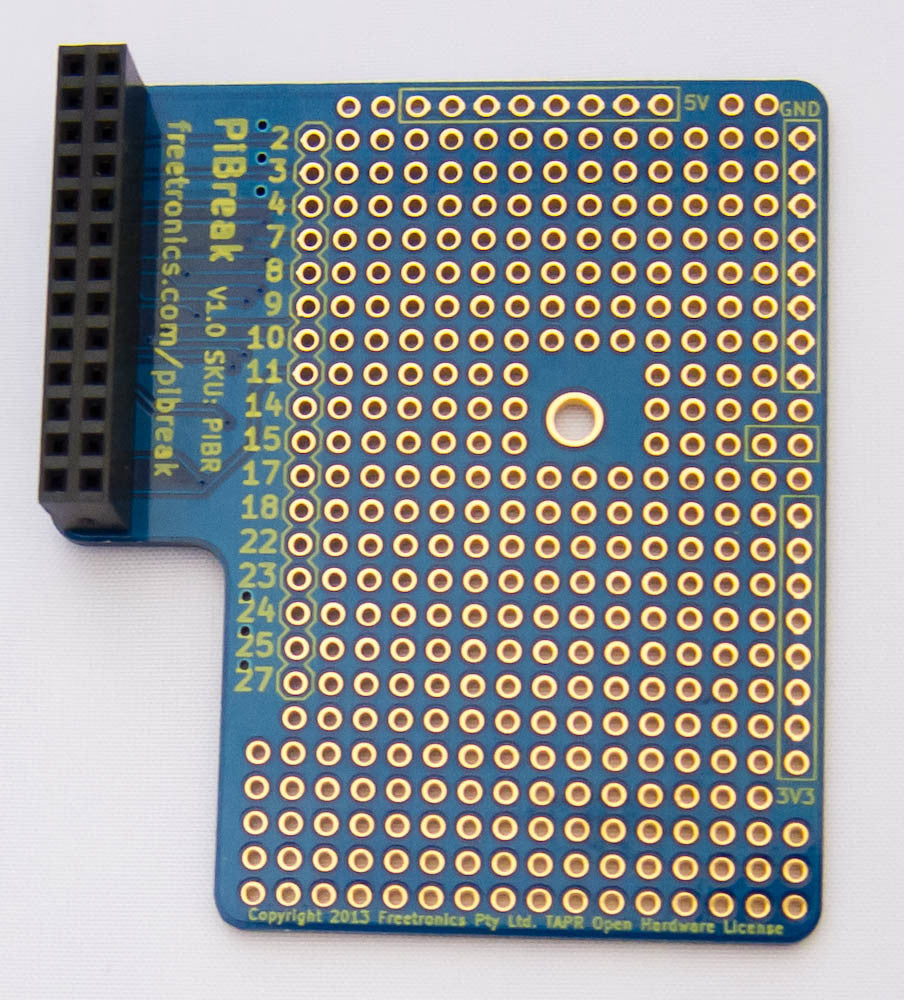

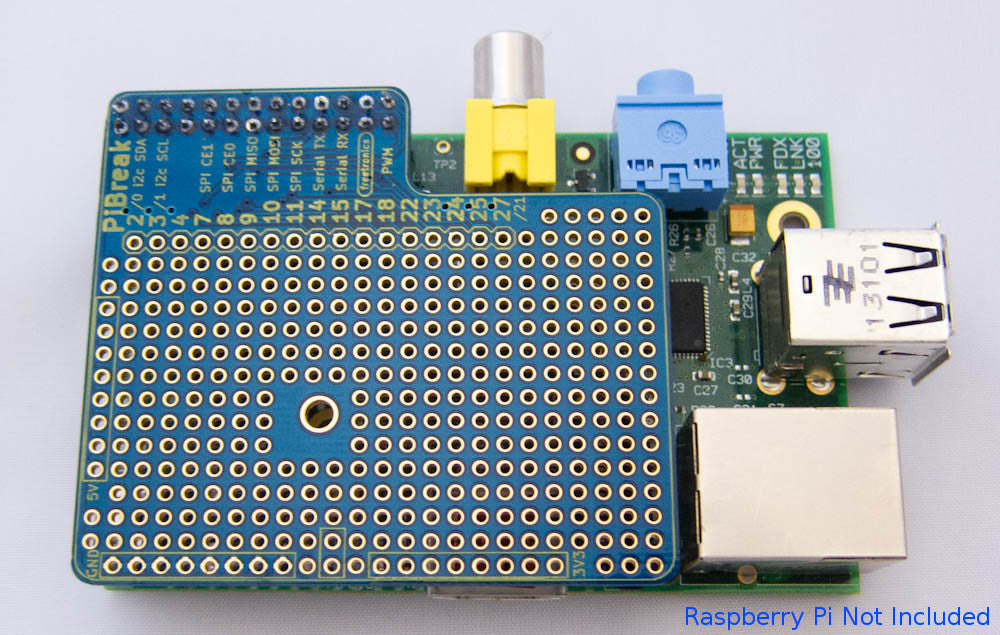

Need to attach some electronic components or sensors to your Raspberry Pi? PiBreak is a prototyping board for the Raspberry Pi. It provides labelled breakout pins for all GPIOs, a large prototyping area with solder pads, and power rails for easy power connection.

Compatible with all Raspberry Pi and equivalent boards with a 26-pin expansion header, including:

  • Raspberry Pi model A
  • Raspberry Pi model B

Note: Although this board will fit on newer Raspberry Pi models including A+, B+, and model 2 that have a 40-pin expansion header, it won't allow connections to the additional pins. For an expansion board compatible with those models, see our PiBreak Plus Raspberry Pi Prototyping Board.

Features

  • Gold-plated (ENIG) PCB for durability
  • Large prototyping area to place your own parts
  • GND and 3.3V power rails
  • Raspberry Pi I/O broken out next to the prototyping area
  • Pinout markings on both the top and bottom

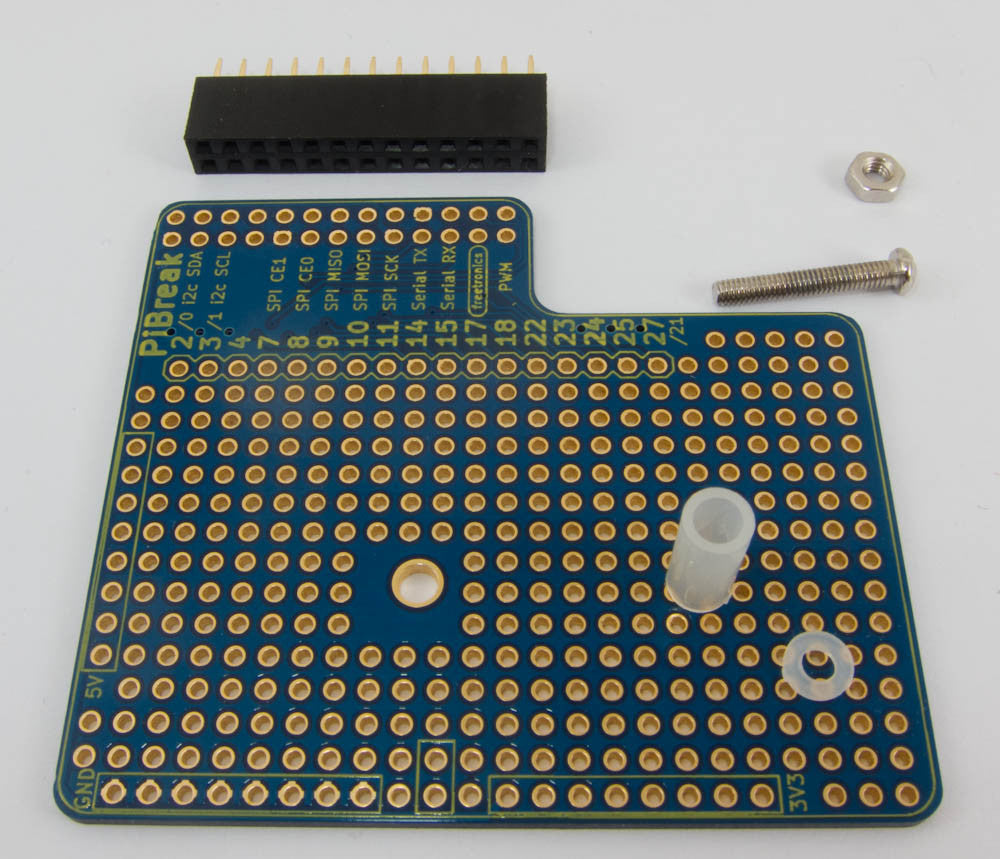

  • Includes nut, bolt, and spacer for firm mounting

Resources


SKU:
  • PIBR (17)
